NCE / LNCE (cassette)

High Voltage Power Module

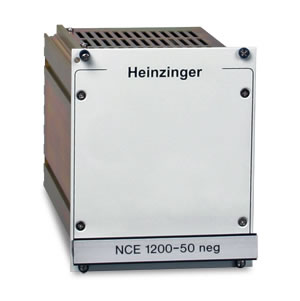

The NCE series - AC/DC converter up to 60kV

The NCE-series uses an input voltage of 230 V AC at 30 or 60 W to supply a high voltage of up to 60 KV. The high-voltage cassettes in the 3RU/19" format are predominantly used in devices and machines. Devices for the range above 10kV are made with a cast high-voltage element to extend the module's service life and enable them to work independent of ambient conditions.

The LNCE series - DC/DC converter up to 20kV

The LNCE series is the right solution if precise high voltages are needed at low power without taking up much space. The high-voltage modules provide voltages of up to 20,000V. Thanks to their low residual ripple, they are particularly suitable for challenging applications such as the operation of photomultipliers. The devices use an input voltage of 24V DC. These devices are also made with a cast high-voltage element (>10kV) to extend the module’s service life and enable them to work independent of ambient conditions.
