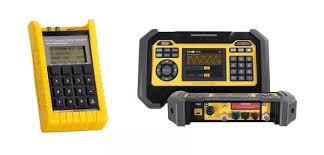

Portable Hand-held Signal Simulators/Calibrators with Laboratory Equipment Accuracy
Diagnose sensor signal integrity or calibrate sensors using MTI Instruments’ portable and ruggedly designed signal simulator products.
Our Signal Simulator product line offers affordable, laboratory precision in a field ready package.
Having a Precision Portable Signal Simulator and Calibrator is a must-have for engineers and technicians working in a variety of fields – from routine troubleshooting and maintenance, to calibrating and tuning advanced equipment such as eddy current probes, strain gauge amplifiers, or charge amplifiers for jet turbine vibration analysis.
Features
- Portable and Rugged – features a rugged, but ergonomic, design that lets you bring laboratory-grade precision into the field.
- Signals – Dual Voltage, Single Current Loop, and Single Charge Mode in both Single Ended and Differential Forms.
- Waveforms – Custom, Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1Hz to 100kHz n 0.1 Hz increments.
- Jog Function – Vary the signal amplitude in increments to determine system gain, or vary the signal frequency to determine filter response.
- Sweep Function – Customizable time, voltage or charge.
- Bridge Circuit Simulation – Easily command microvolts to simulate strain gauges.
- High Accuracy – Voltage and charge signals with accuracies to 0.05%.
- Versatility – Build your own applications using common SQL queries.
- Light and dark modes to accommodate user preference and lighting conditions.
- Languages supported: English; additional languages coming soon.
- UI designed with color vision deficiency users in mind.
- A/B channels are color mapped for ease-of-use.
- Annual calibration plans available to help meet NIST regulatory requirements.
Applications
- Cabling and wiring troubleshooting
- Audio signal simulation
- Vibration signal simulation – accelerometers and velocity probes
- Machinery speed signal simulation
- Low-voltage bridge sensor signal simulation
- Calibration of:
- Monitoring systems
- Charge amplifiers
- Avionics equipment
Product Comparison
| Feature | 1520 | 1510A |
|---|---|---|
| Dimensions | 257 mm L x 155.2 mm W x 55.9 mm H 10.12 in L x 6.11 in W x 2.22 in H |
190 mm L x 11 mm W x 57 mm H 7.5 in L x 4.25 in W x 2.22 in H |
| Weight | 1 kg (2.2 lbs) excludes interface cables/connectors/charger |
0.8 kg (1.8 lb) approx. excludes interface cables/connectors/charger |
| Power | External charger operates from 115/230VAC, 50-60Hz up to 36 watts for fast charging |
External charger operates from 115/230VAC, 50-60Hz Approximately 5 watts |
| Battery | Rechargeable, Lithium Ion battery, Non-Removable | Battery Pack – NIMH, 2500mAH, size AA (Qty 4) |
| Battery Life | Up to 10 hours (typical) from full charge (depending on use of the display/back-light and wireless) | Up to 6 hours (typical) from full charge (depending on use of the display/back-light and wireless) |
| Signals | Single Current Loop, Dual Voltage, and Single Charge Mode in both Single Ended and Differential Forms | Dual Voltage, and Single Charge Mode in both Single Ended and Differential Forms |
| Waveforms | Custom, Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1 Hz to 100kHz in 0.1 Hz increments | Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1 Hz to 100kHz in 0.1 Hz increments |
| Set-Up Memory | 100 locations to save settings for all outputs and functions | 40 locations to save settings for all outputs and functions |
| Connectivity | USB-C, WiFi for remote operation, Bluetooth capability for future expansion | USB-A Connector USB 1.0 for remote control, programming and calibration |
| User Display | 320×240 TFT Color Resistive Touchscreen, Glove Compatible LCD white Back-light |
Graphical, 128×64 pixel B&W LCD White Back-light |
| Interface | Touch Screen and Keypads | Menu Driven, Keypads |
Downloads
Specifications
| Model | Description |
|---|---|
| Vitrek 1510A | 1510A Portable Signal Generator and Calibrator |
| Vitrek 1520 | 1520 Portable Signal Simulator |
