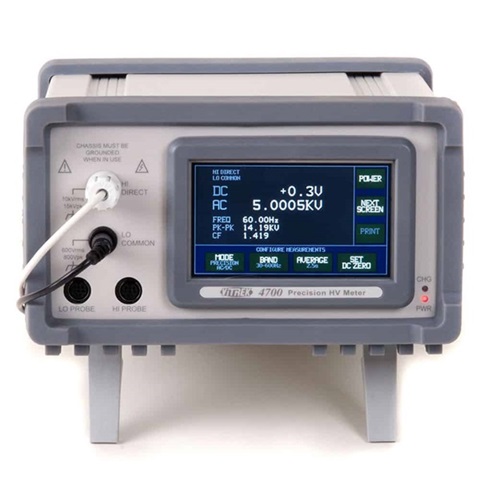

Precision High Voltage Meter

High Voltage Meter has been upgraded!

• The highest level of measurement accuracy yet is surprisingly easy to use
• harnessed DSP technology to provide outstanding AC & DC voltage accuracy, stability, and resolution
• Touch graphic display simultaneously shows the AC and DC content of the voltage being measured and can plot readings from a few seconds to several days.
• Precisely measures voltages directly up to 10KV, right out of the box – with no external probes.

Available ISO 17025 Accredited Calibration

• The 4700 and probes come with an ISO 17025 accredited calibration certificate with data at no charge.
• Vitrek is accredited to ISO 17025 by A2LA.
• Consider Vitrek at the forefront when it comes to your annual calibrations for the 4700 and probes.

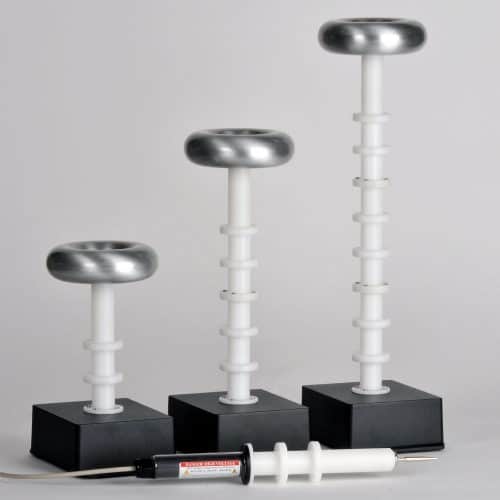

High Voltage SmartProbe™

you can expand your high voltage measurement range – just add one or more of the available 35KV, 70KV, 100KV and 140KV SmartProbes™.

• The Vitrek SmartProbes™ each store their own calibration data this results in high accuracy, calibrated readings
• Allow any Vitrek SmartProbe™ to be used with any 4700 High Voltage Meter.
• The SmartProbe’s™ proprietary, ultra-low TC attenuator design minimizes self-heating – while its lower capacitance construction technology enhances AC performance.
• Two probe inputs – use one probe to extend your measurement range or use two probes for making high voltage differential measurements.

Automation in High Voltage Test

Automate your HV test requirement with the 4700’s built-in Ethernet port, high-speed serial communication port or available GPIB.

The 4700 is fully programmable – so you can select your measurement mode and bandwidth, then take readings as often as desired.

Superior Performance by Design

• makes over 40,000 readings per second which are then filtered, sub-sampled, scaled and offset corrected – all with “error-free” mathematic methodology.
• The True RMS AC readings are as true as they come, while the DC measurements offer rocket fast settling with rock-solid stability.
• VLF AC readings down to 0.01 Hz, as well as, peak to peak, crest factor and fundamental frequency measurement.
• Available G series probes offer extremely high input impedance options for electrostatic voltmeter applications.

• Basic Accuracy – 0.03% DC and 0.1% True RMS AC
• Calibrates Hipot Testers, HV Power Supplies and Insulation Testers
• Measures up to 10kV directly & 35, 70, 100 or 140kV with HV Smartprobes

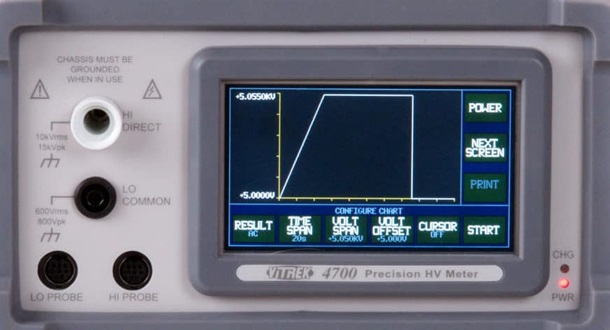

• Chart Mode provides Graphic documentation of HV drift, ramp time, overshoot and sag
• True RMS AC Measurement from 0.01Hz to 600Hz – Covering VLF to Aviation Frequencies
• Standard ISO 17025 Accredited Calibration

• Color Touch Screen – Easy Measurement Selection & Display
• Dual inputs allow Differential or Phase to Phase Voltage Measurement
• High-Speed DSP provides up to 60 filtered reading/sec
• AC Noise Rejection 78dB – For Rock Solid, 6 Digit DC Measurements
• Optional Battery Pack goes up to 11 hours between charges
• G Series – High Input Impedance Probes for Electrostatic applications
• Simultaneous AC & DC Voltage Readings
• Ethernet, Serial, USB  all standard, GPIB optional
• CE mark Certified to EN61010
