High Voltage Switching System

High Voltage Scanning System - Vitrek 964i

Automated Multi-channel Hipot - High Voltage Testing



Built precisely to meet your HV Switching requirements

The 964i holds up to 8, eight channel HV switching cards. That’s up to 64 test points in a single mainframe – multiple units can be combined to increase capacity. The voltage ratings are 3KV, 7KV, 10KV and 15KV for all kinds of high voltage test application.

Quick set up, 600 channel maximum for any possible switching

The 964i is simple to set up and up to 60 rear terminals connect with your test fixture or DUT. Up to four 964i’s can be controlled directly by a single Vitrek 95X or V7X Series Hipot Tester, or up to 10 via PC through the 964i’s built-in RS232 (serial) port or available GPIB interface. The 964i’s LCD display confirms system status and switch activation at a glance.

Try the 964i HV Scanner, you will never manually switch again

The Vitrek 964i routes high voltage test signals and return signals to any desired test points. This unique capability gives you control over each individual relay, unlike typical cable testers and HV scanner which restrict you to a fixed pattern.

With available mux cards, you can also access the matrix with other equipment such an LCR meter or DMM. The result is a highly repeatable, rapid switching test system with no operator intervention and fully automated data acquisition.

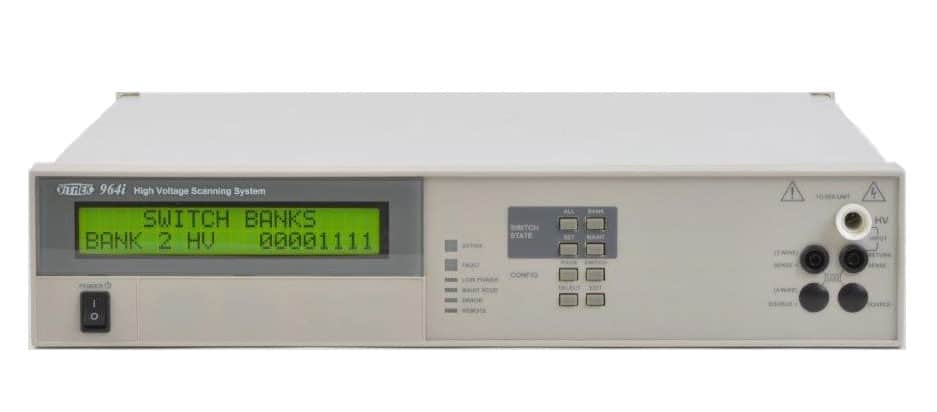

“The 964i rear panel accommodates up to 60 output terminals. Unit shown above with 16 + terminals (HV) and 16 – terminals (return). The 964i ships with mating connectors for all +/- HV terminals 7KV and higher. Custom length HV lead sets are optionally available.”
