Precision Multi-Channel Harmonic Power Analyzer

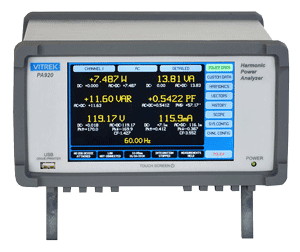

PA900 / PA910 / PA920

World Class Accuracy & Bandwidth
Easy-to-Use Touchscreen Operation
All the Data you need at a Price you can Afford



From single-phase to multi-channel, Vitrek’s precision power analyzers provide high-speed sampling, and superior voltage and current self-heating compensation—ensuring precise and reliable measurements for a wide range of applications.

Vitrek’s power analyzers effortlessly accommodate high crest factors, low power factor loads, and waveforms up to 5 MHz, ensuring accurate performance under the most demanding conditions. Whether you are testing power electronics, EV powertrains, aerospace systems, medical devices, or industrial machinery, our scalable solutions— expandable to thousands of channels—deliver the insights you need.

Key Features and Benefits

Fast: 384 effective sample rate. Can make measurements up to 100/sec without a specification adder (500/sec available with specification adder).

Guaranteed Accuracy: From 0.045 to 0.024% at all power factors and frequencies.

Reliable: All specifications valid for 2 years after calibration. Most are valid for life of product.

Fully Specified for both DC and AC throughout its voltage and current capability– down to 0.1 A is available.

Excellent Value for Performance: Products at multiple prices all offer unique value.

Flexible: Can be utilized as an oscilloscope or powerscope for voltage, current and power.

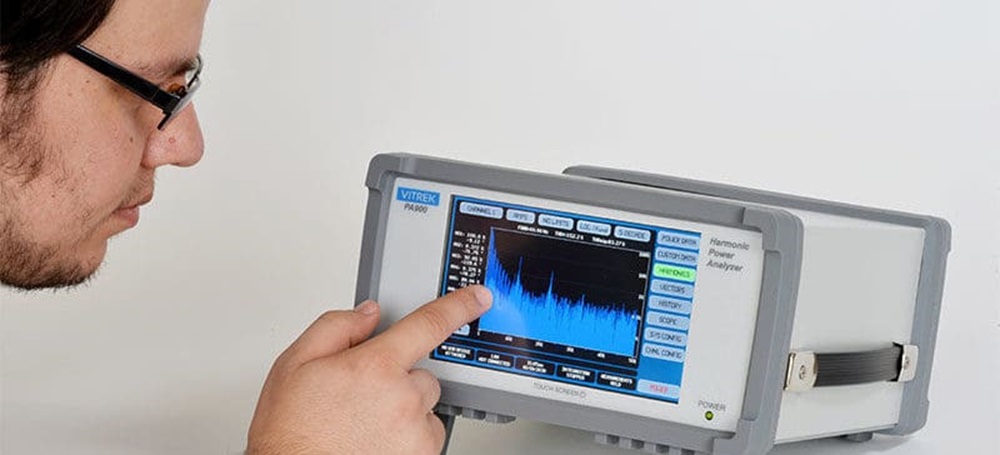

Large color touchscreen for quick setup, measurement configuration, and channel selection.

Supports key Industry standards including:

  • EN60034-2-1:2014 (motor drives)
  • EN50564:2011 (standby power)
  • EN61000-3-2, 3-12, 4-7 (harmonics emissions)
  • RTCA DO-160/E/F/G (avionics)
  • Boeing 787B3-0147
  • Airbus ABD0100.1.8 (A380), ABD0100.1.8.1 (A350)

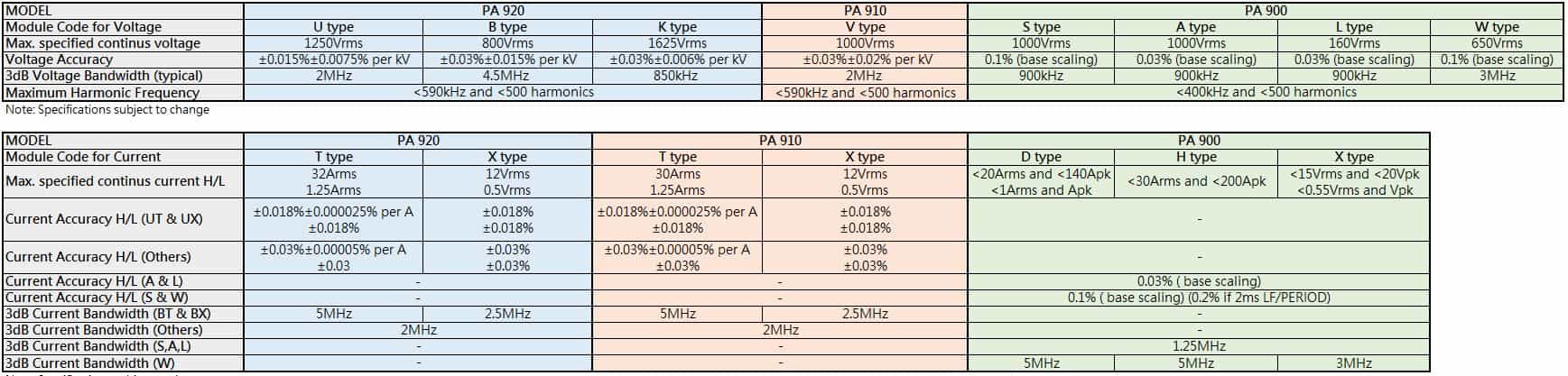

Model Selection
