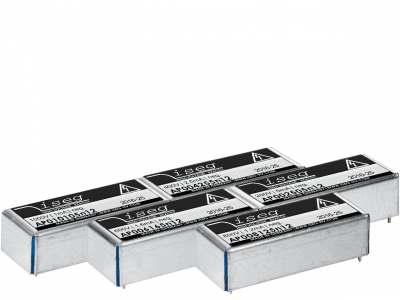

APS
Small High Voltage Print Module for PCB Mounting

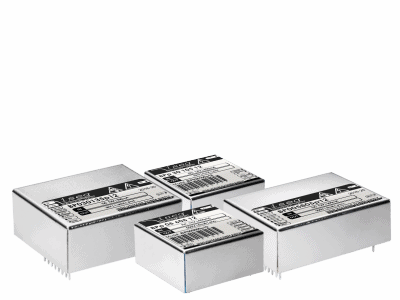

BPS
High Voltage Print Module for PCB Mounting

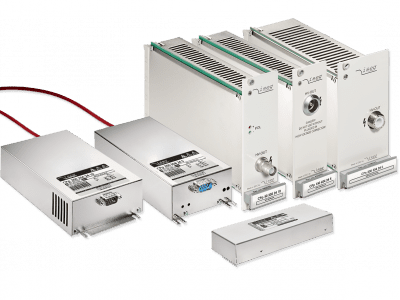

CPS
Built-in or System Capable Compact High Voltage Module

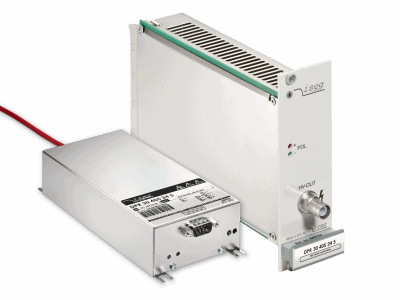

DPS
Built-in or System Capable High Precision HV Module

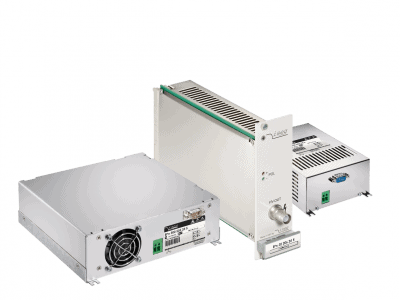

EPS
Versatile Built-in or system capable HV Power-Module (INTERLOCK)

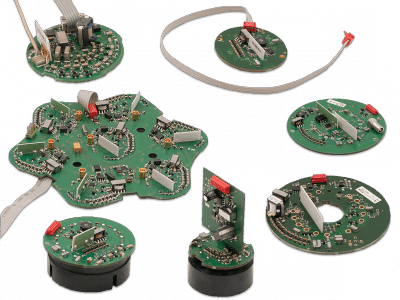

PHQ
Integrated HV Supplies for Photomuliplier Tubes (PMT)
Specifications
| Model | Series | Channel | Voltage | Vin | ripple & noise | HV connector | options |
|---|---|---|---|---|---|---|---|
| APS 0.5W | Small High Voltage Print Module for PCB Mounting | 1 | 200V – 1kV | 5V | 10mV | pin | - |
| APS 1.0W | Small High Voltage Print Module for PCB Mounting | 1 | 200V – 1kV | 12V | 10mV | pin | - |
| BPS 1.0W | High Voltage Print Module for PCB Mounting | 1 | 500V – 3kV | 5V – 5.5V | 10mV – 15mV | pin | - |
| BPS 3.0W | High Voltage Print Module for PCB Mounting | 1 | 500V – 3kV | 12V | 10mV – 15mV | pin | - |
| BPS 4.0W | High Voltage Print Module for PCB Mounting | 1 | 500V – 3kV | 12V | 5mV | pin | - |
| CPS 12W | Built-in or System Capable Compact | 1 | 0.5V – 30kV | 24V | 10mV – 1500mV | HV-cable | 3UC, A0 |
| CPS mini | Built-in or System Capable Compact | - |
1kV – 6kV | 24V | 10mV – 20mV | pin | - |
| DPS Standard | Built-in or System Capable High Precision | 1 | 500V – 6kV | 24V | 7mV | HV-cable | 3UC, MK, A0 |
| EPS 60W | Versatile Built-in or system capable | 1 | 0.5kV – 40kV | 12V – 24V | 0.1V – 500V | HV-CABLE, SHV, GES, LEMO | 3UC, ARC, CLD, A0 |
| EPS 150W | Versatile Built-in or system capable | 1 | 1kV – 30kV | 24V | 0.2V – 3V | HV-CABLE | ARC, CLD, A0 |
| PHQ | Integrated HV Supplies for Photomuliplier Tubes (PMT) | 1 | 1.3kV – 3kV | - |
10mV | - |
- |
