High Power Resistance Decade Box
HPRS Series

High Power Resistance Decade Box

  • Resistance from 1 mΩ to 10 MΩ
  • Power Rating : 225 W/decade, 250 W max. or higher (contact IET for custom higher power units)
  • Accuracy: 0.5% or 1%
  • Special and custom configurations available
Type： Resistance Decade Box
Tag：
Share：
HPRS

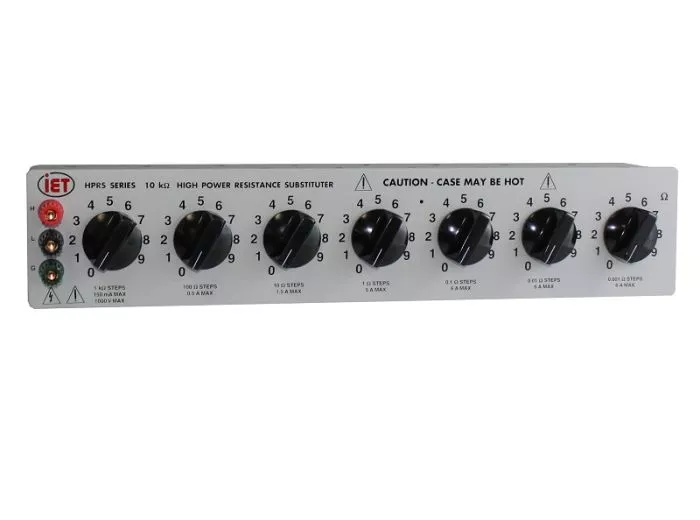

The High-Power Decade Resistance Substituter (HPRS) Series is a family of resistance decades offering a broad choice of high-power, excellent-performance resistance sources.

The HPRS Series resistance decades employ state-of-the-art precision resistors of various types for high accuracy, high stability, and low temperature and power coefficients of- resistance. High-power resistors within the unit are made available without sacrificing other electrical properties.

The standard models offer a choice of 3 to 8 decades. The panels are clearly labeled showing the step size and maximum voltage and current limitations for each decade.

With a resolution as low as 1 mΩ and a maximum resistance of 10 MΩ , the HPRS resistance decade box may be used as a general purpose substituter as well as a high power load for testing power supplies and for other high-power applications.

Applications include calibration of meters and instruments. HPRS resistance decades are useful development tools wherever precise resistances with high-power handling capacity are required.
